Selecting Matrix Items on Sales Order

There are 2 ways on how you can select Matrix items.

1. By using the Item No.

Let’s say you know the specific Item No., then you can use that to find the item on the Sales Order.

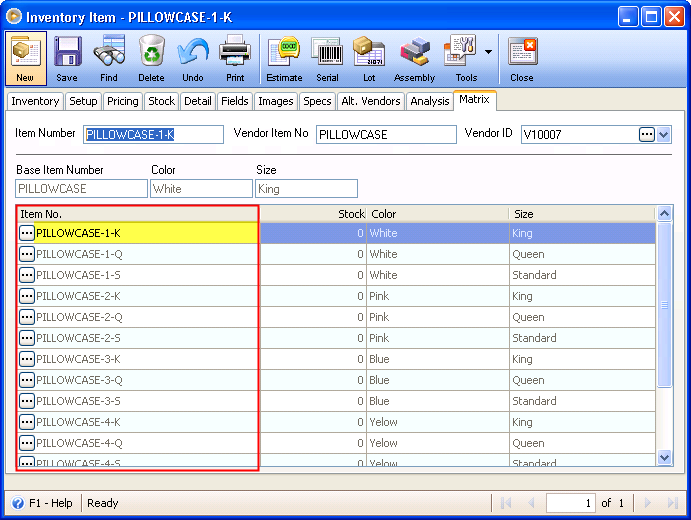

Example: Take note of PILLOWCASE-1-K

mso_01

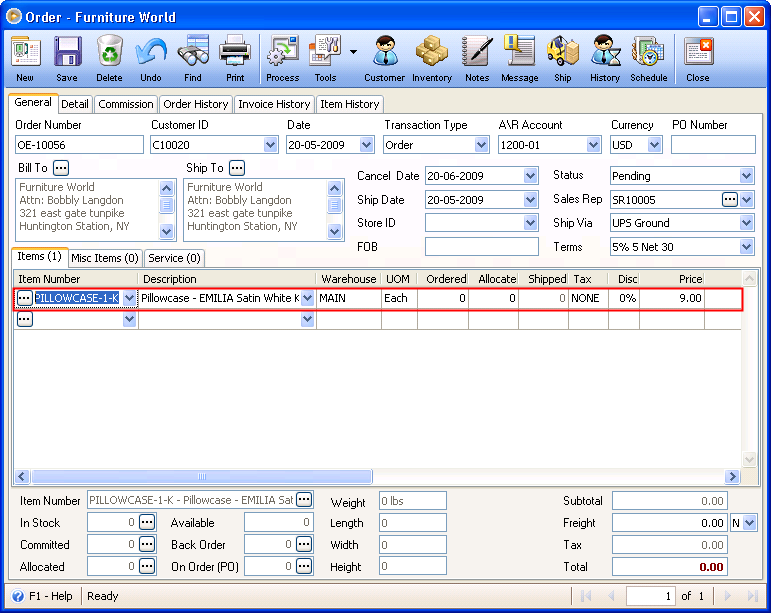

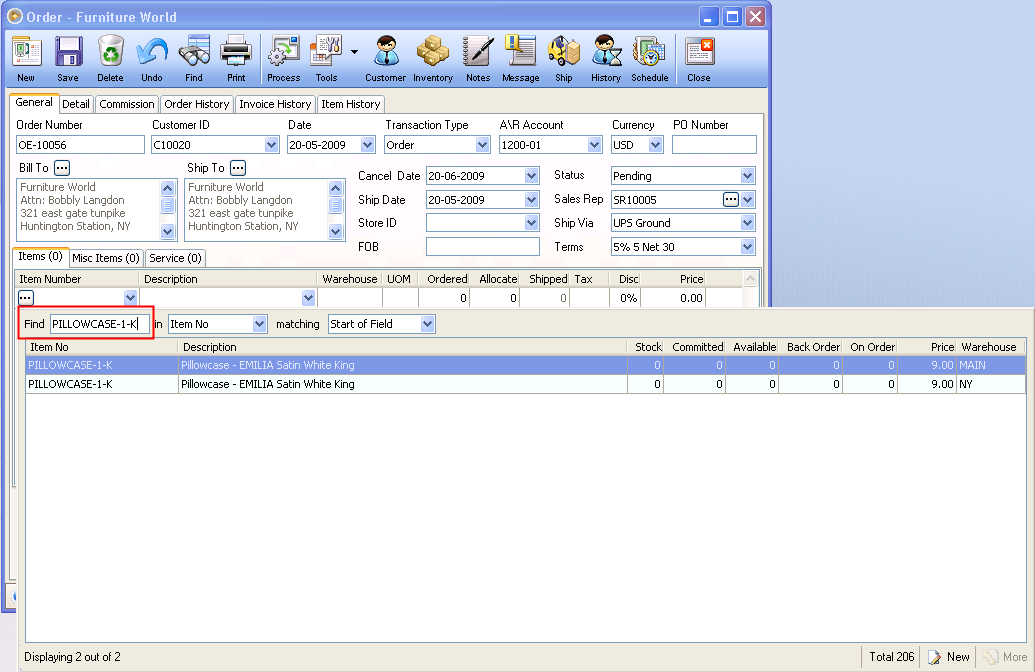

In the Sales Order, find for that Item No. and select the item.

mso_02

mso_03

2. By using item’s Attributes

Let’s say you know the Item’s attributes, then you can use that to find the item on the Sales Order.

Example: Take note of the highlighted attributes.

mso_04

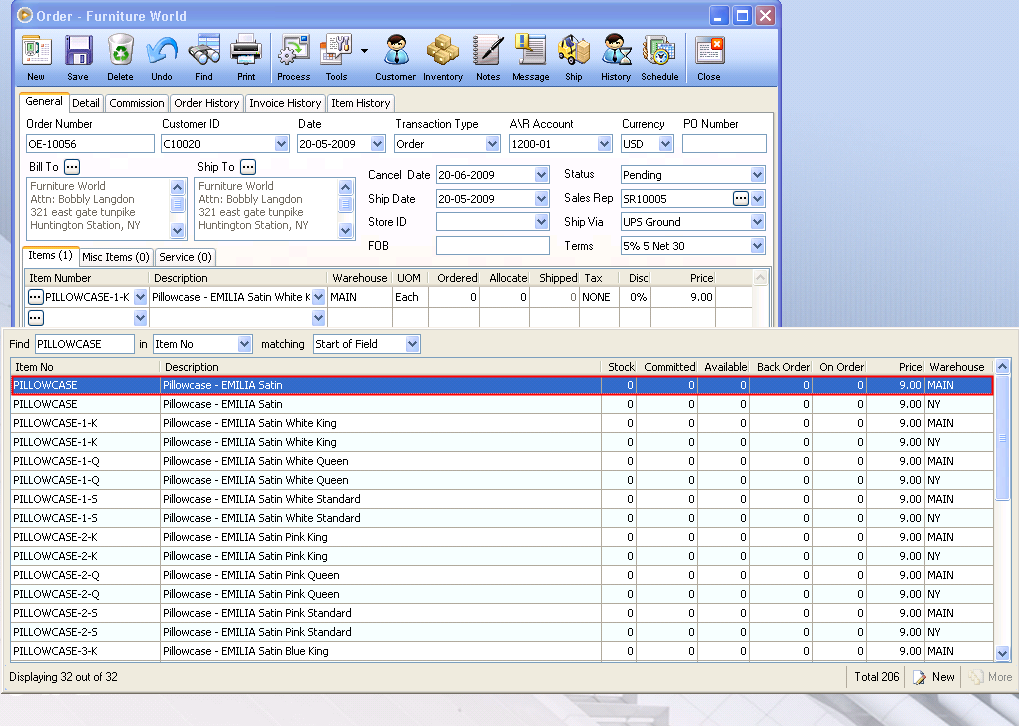

In the Sales Order, type pillowcase and then select the item.

mso_05

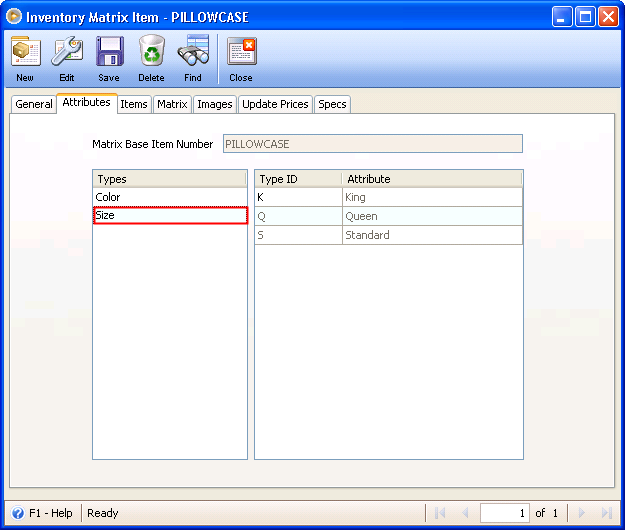

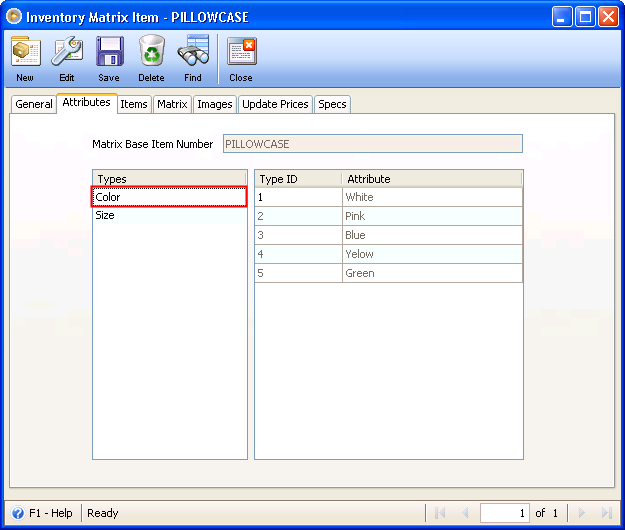

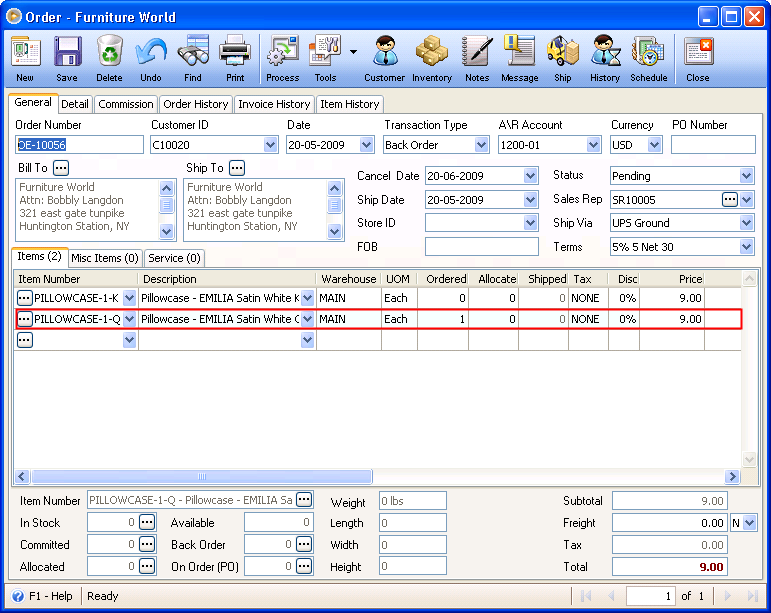

Once the Inventory Matrix Attributes form opens, select the noted attributes and click OK button.

mso_06

mso_07

mso_08
